DigiRout DR1325/DR1530 Ultra CNC
4'x8' or 5'x10'
High Production Carousel ATC
Pricing for 2016 $22,000
ULTRA FAST and ULTRA LOW PRICE!
Email us at sales@digrout.com or Give us a call at 412-53CNC77 (412-532-6277)
If
you need a production CNC machine with a full size 5'x10' and Carousel
ATC cutting area but at 1/3rd of overpriced competitors then the
Digirout DR1530 ULTRA ATC may fit the bill.

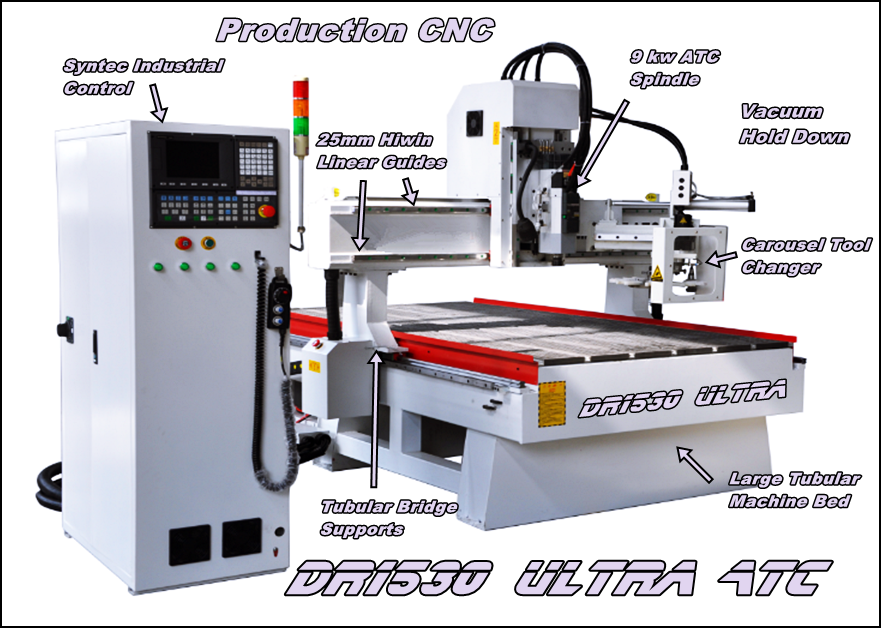

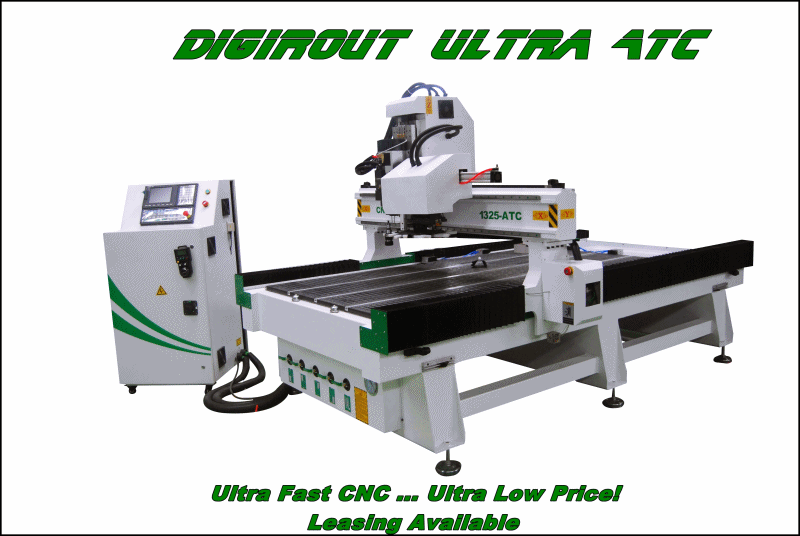

Here
are a few pictures and video of the Digirout Ultra ATC.
Pricing
for 2016 of $21,000 for DR1325Ultra and $22,000 for DR1530Ultra (price
subject to customized quote, import fees, and shipping).
- 25M Profiled Linear Rail
- Hardened 25mm Helical gear rack X & Y axes, 25mm ballscrew Z axis
- 850w Japan Yaskawa or Paasonic Servo Motors and drives
- 8 Carousel ATC Tool magazine
- 5'x10' cutting area

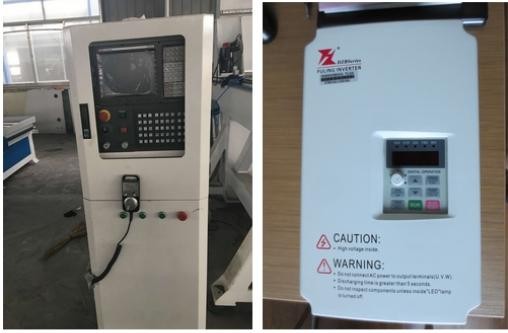

- Taiwan Syntec or Weihong NK260 controller
- 9kw HSD ATC air cool spindle or China 9kw ATC water cool spindle

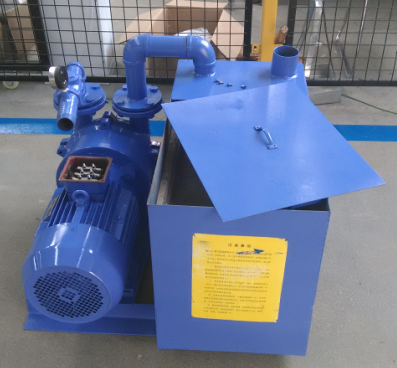

- 220v three pahse 5.5kw or 7.5kw vacuum pump

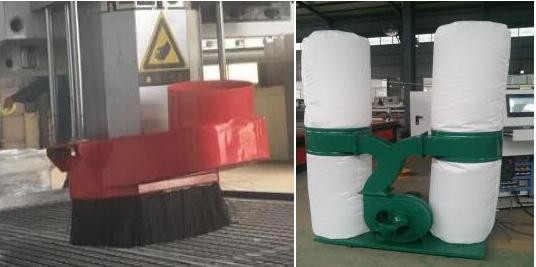

- 220v three phase two ba Dust Collector
- Tool Change Sensor
- Manual Oil Lube for linear guides
Just tell us what other options (Rotary 4th Axis) you require and we can work up a quote for your application. Back
