The
industrial DR1325 Imported full featured CNC Router offers a full sized
4'x8' CNC Router
at an economical price starting at
4'x8' for $7100.
Constructed from heavy duty steel tubing and weldments, the imported
DR1325
features a large cross section bridge, ultra high torque
digital drive system, precision ground profiled guideways and linear
bearings on all axes,
rugged duty rack and pinion transmissions on X&Y axes,
and precision ballscrews on the Z axis.
If you need an all steel industrial cnc router, the DR1325 Imported CNC
router will work for you at a reasonable price.Our introductory pricing
allow shops to buy an industrial cnc router that pays for
itself
in just a few short months of operation.
See Pricing at the bottom of this page.
New Imported
DR1325 Machines
CNC
Technology On the Cutting Edge
New DR1325
Imported

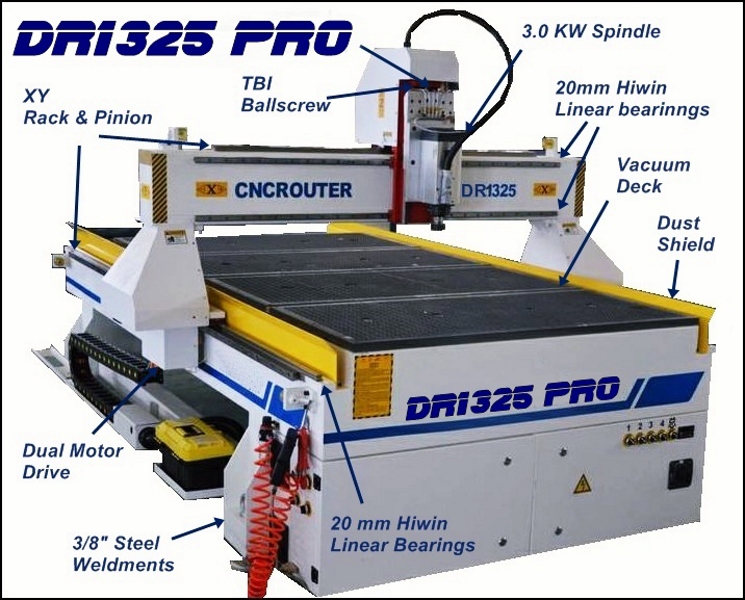

DR1325 Pro DC Servo
Option
- Skewed rotor design
- Constant torque 225 oz-in
- Peak torque 1125 oz-in
- Max
Speed 3000RPM

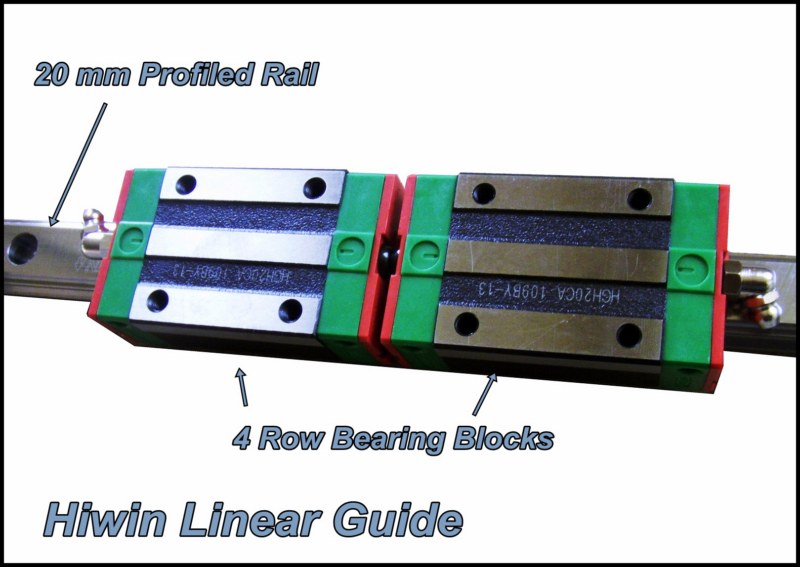

DR1325 Hiwin Bearings
20mm
Hiwin Rails and Blocks
- Size:205mm Linear
Guide Rail
- Dynamic
Load: Up to 2,020 lbs.
- Static
Load:
Up to 3,930 lb
s.
Pro AC Servo
Increase
the speed of the DR1325
to 1500 IPM with a .75kW (1HP)
- Brushless
AC servo motor.
- Rated Power:
0.75KW ( 1 HP)
- Peak Torque:
1010 oz-in
- Max Speed: 3000
RPM
Click on DR1325 Model
Below
Give us a call
Toll Free at 412-53CNC77 (412-532-6277) to discuss your CNC Router
application or email us at
sales@digirout .

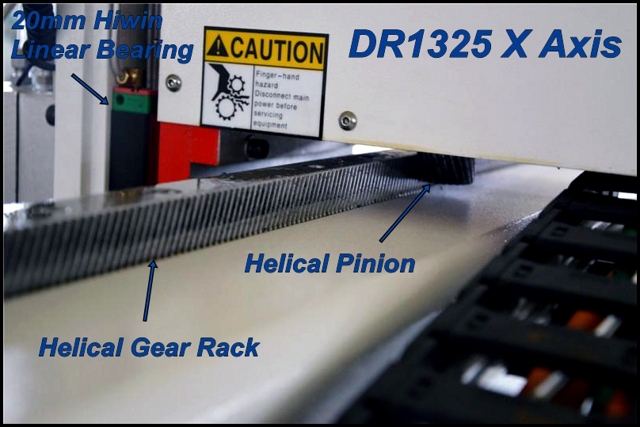

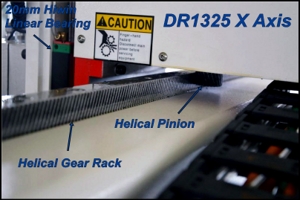

DR1325 Pro X axis

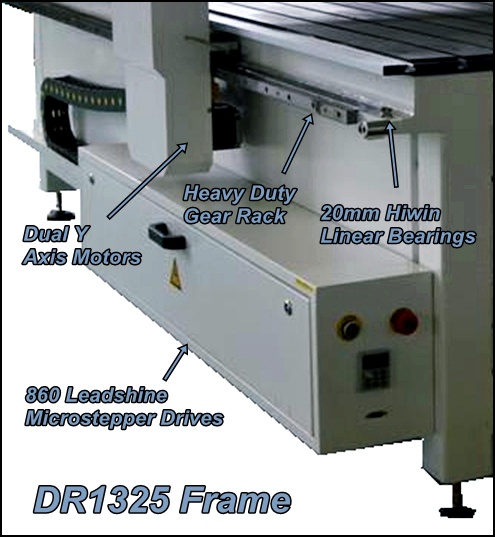

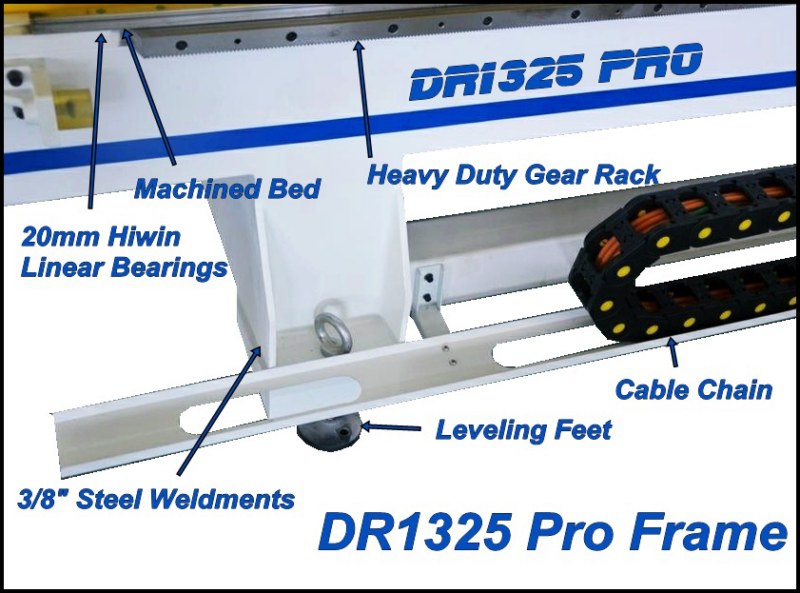

DR1325 Pro Frame Features

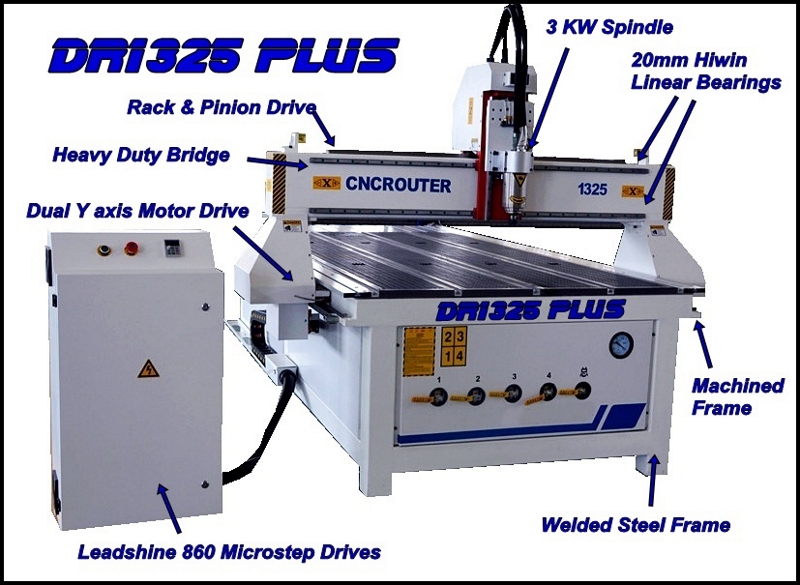

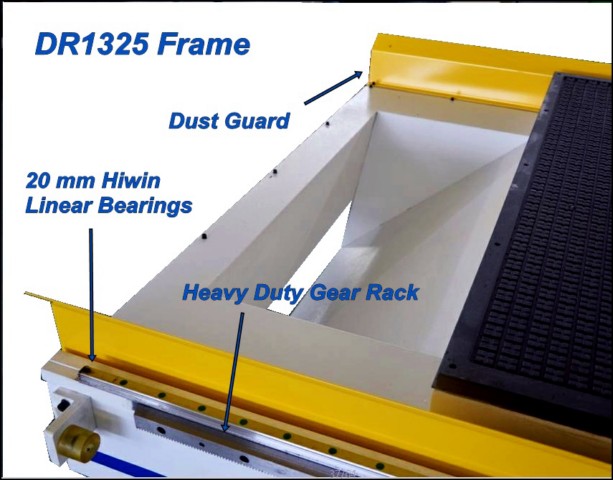

DR1325 Plus Frame

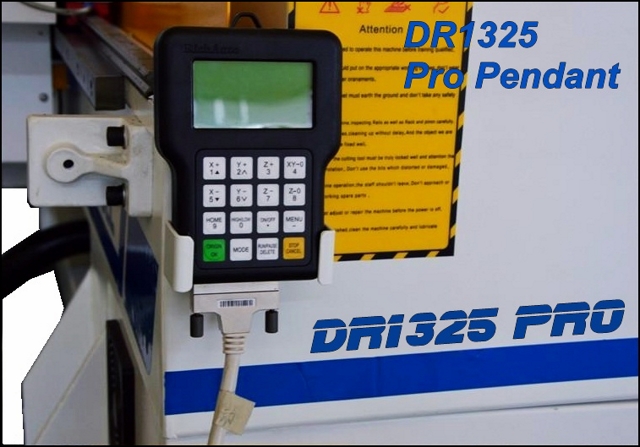

DR1325 Pro Pendant

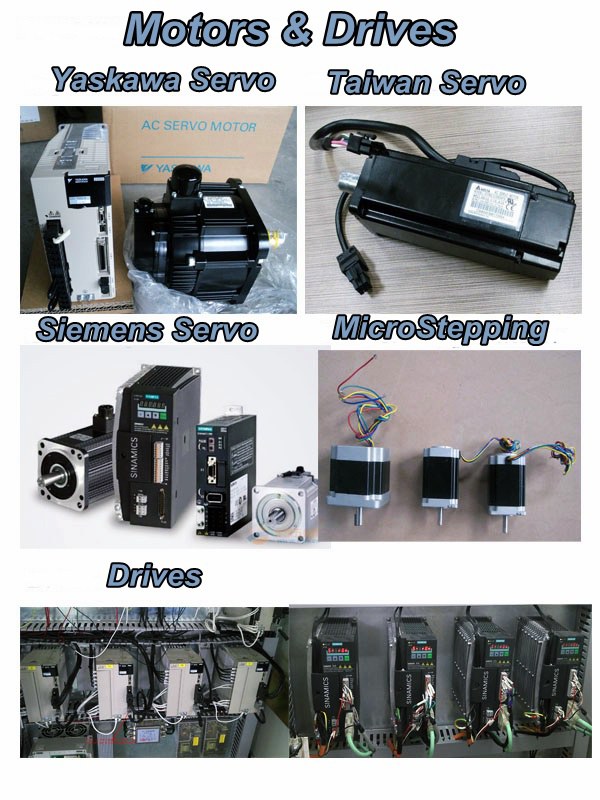

DC Servo Motors

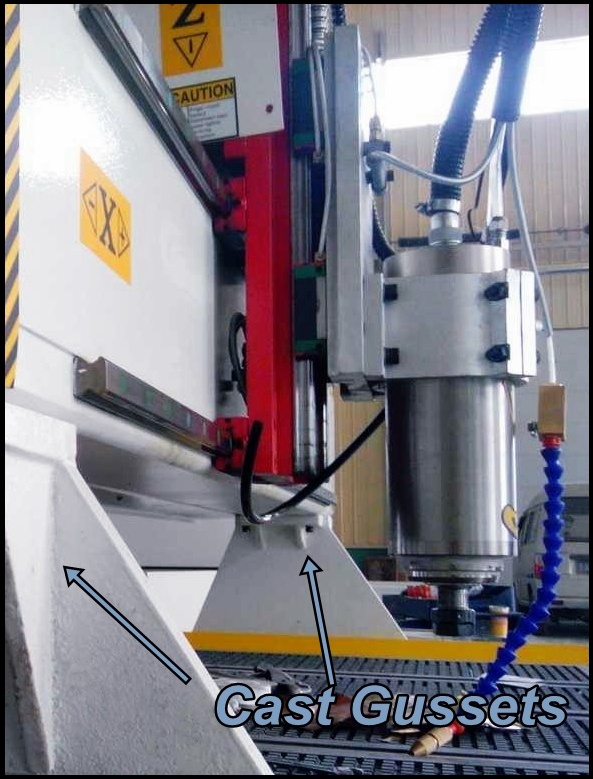

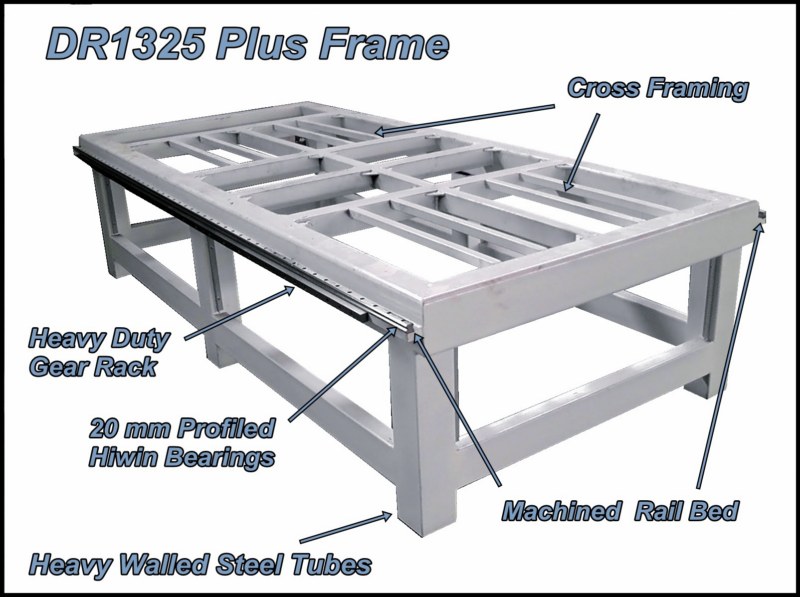

All Welded Steel Frame
D
DR1325
Import Prices
Click on
Picture on right for High resolution image

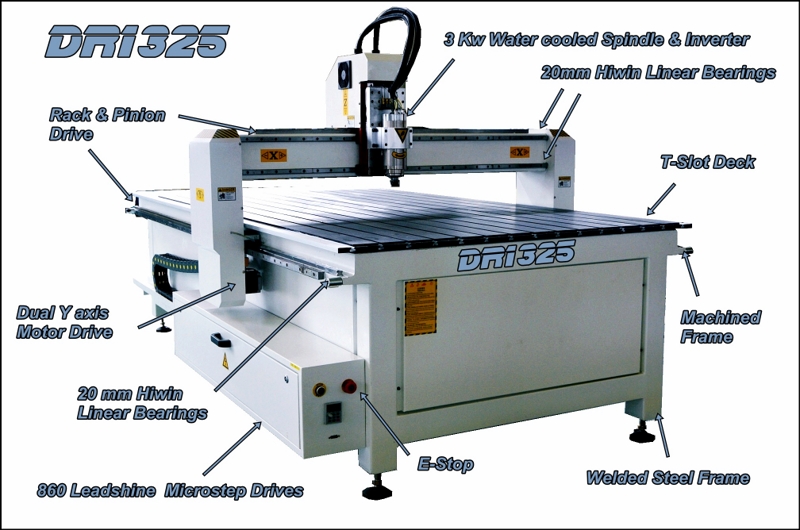

DR1325
Import
| · |
4'x8' '
Cutting Area |
| · |
Easy
Loading Table |
| · |
500
IPM Speed |
| · |
Smooth
Contouring |
Standard
Features
| · |
Speeds
up to 500 Inches Per Minute |
| · |
DSP based Motion Control
|
| · |
High
Torque Motors and Leadshine Microstepping Drives |
| · |
Precision
MultiSart Ballscrew on Z-Axis |
| · |
Rugged
Dual Rack & Pinion Drive on X & Y axes |
| · |
Welded
Tubular Steel Frame |
| · |
Precision
Machined Frame |
| · |
High
Speed 2D contouring & 3D machining |
| DR1325 Imported CNC Routers |
CAT # |
Price |
|
DR1325 Standard 4'x8' CNC Router with 3 KW
water cooled spindle |
DR1325-Std |
$7,100 |
| DR1325
Plus 4'x8' CNC Router
with 3 KW water cooled spindle |
DR1325-Plus |
$8,100 |
|
DR1325 Pro 4'x8' CNC Router
with 3 KW water cooled spindle |
DR1325-Pro |
$9,100 |
|
DR1325 Pro 4'x8' CNC Router
with 3 KW HSD spindle |
DR1325-ProHSD |
$9,900 |
| DSP
microstep Motor Upgrade |
DR1325-DSP |
$500 |
| DSP
closed loop microstep Motor Upgrade |
DR1325-DSPC |
$CALL |
| DC Brush Motor
Servo Upgrade
|
DR1325-DCS |
$CALL |
| AC
Brushless Motor Servo Upgrade |
DR1325-ACS |
$2500 |
