Table Base Kit

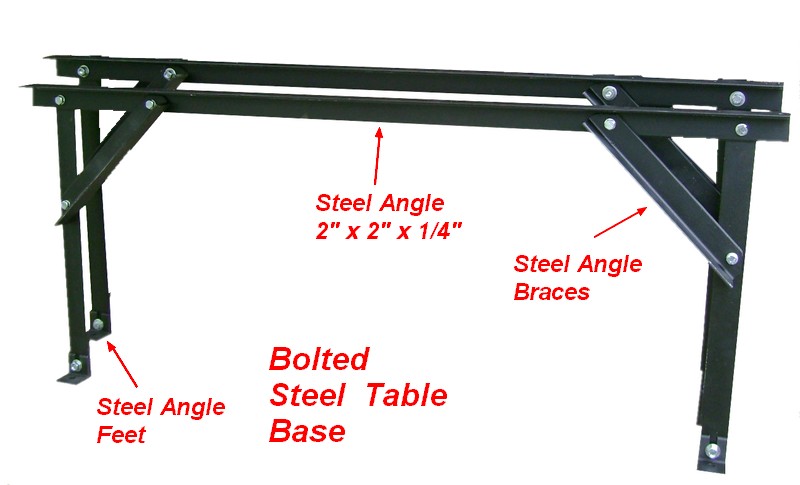

The Table Base Kit is a ready to assemble bolt together table base constructed from 2"x2"x.25" steel angle. Three leg bases are provided, angle braces, angle clips (not shown) to tie the Y axis long rails to the crosspieces as well as two steel angle cross pieces (not shown)\

. The feet can be tied to the floor with concrete anchors and are slotted where they attach to the legs to provide for levelling the table. The table deck (3'x6' MDF, marine plywood, or particle board) and side skirting (usually two pieces of 2'x6" MDF) must be prvided by the customer. There are countersunk holes on the side of the legs for attaching the skirting with deck screws. The steel table base is an economical alternative to a welded table base.    Back
