3'x5'
for $3500 (kit price). Save Money. Build
it in your Basement!
The

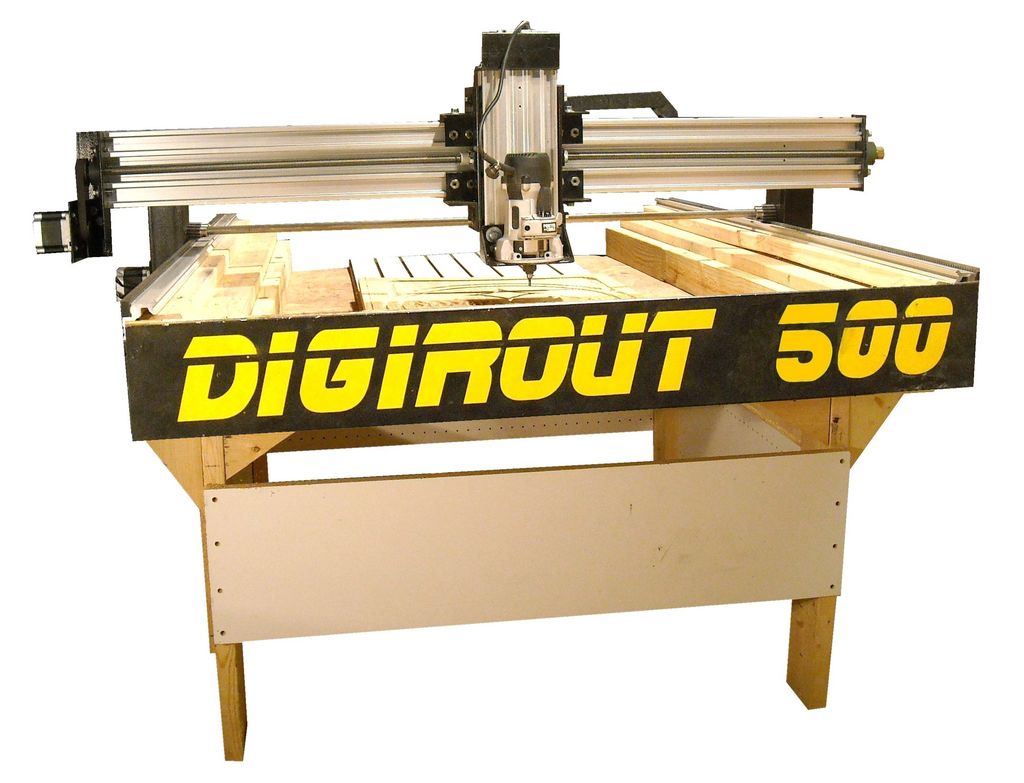

DigiRout 500 is a truly affordable low cost CNC routers with a 3'x5'
cutting are allowing more shops can now take advantage of CNC routing.
The DigiRout 500 CNC router provides quality and dependability without
breaking the bank.
The DigiRout 500 has an efficient 6" x3" bridge, 1/4" thick steel
precision laser cut & structural steel gussets, gothic arch
high
speed linear bearings, precision ground & hardened linear guide
rails, high torque microstepping motors, and a high resolution 2000
step/rev microstepping drive.
Our introductory pricing allow more and more shops to take
that
first step into cnc router technology. For the price of a table saw or
shaper you can buy now buy a CNC router. 3'x5' for $3500.
Lease Rate is less than $4 per day - You may be paying this much for
phone and internet service for your business! See Pricing at the bottom
of this page.
We
now have Pro version of the DR500 available. Please see similar options
on the DR1000 page available now on the 500 (recirculating linear
bearings, ballscrews, servos).
Quality
Parts + Factory Direct Pricing = Great Value
CNC
Technology On the Cutting Edge
DigiRout 500
Click
on DigiRout Model Below
Give us a call Toll Free at 866-966-4335 to discuss your CNC Router
application or email us at
sales@digirout .

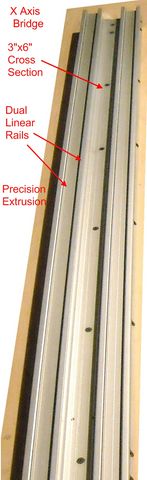

Extruded
Bridge
Table
Base Kit
PC
Interface
2D
CAD/CAM
3D
CAD/CAM
Carving
Software
PC
Motion Controller
Porter
Cable Mount
High Frequency Spindle and Inverter
Y
Axis Long Rails
Hi
Torque Digital Motors
Structural
Steel Parts
DigiRout
Features
| DR500 3'x5'
Base Machine Options |
CAT # |
Price |
| DR535
3' x 5' x 2.5" cutting area Industrial CNC Router kit |
DR-535 |
$3,500 |
| Ready To
Assemble Steel Table Base |
ST-535 |
$300 |
| Porter Cable
892 2 & 1/4 HP router & Mounting Brackets
|
SP-892 |
$300 |
| Cut2D CAM
software |
SW-CUT2D |
$200 |
| Total of Above
without Discount
|
|
$4300 |
| DR535
Package Price Discount |
-$400 |
| D535 Package
Price with $400 Discount |
PK-535 |
$3900 |
|
|
|
| Additional
charge for Pre-assembly |
AS-535 |
$700 |
DigiRout 500
| · |
Speeds
up to 500 Inches Per Minute |
| · |
PC
based Motion Control |
| · |
High
Torque Motors and Microstepping Drives |
| · |
Precision
Multi-Start Lead Screw on X & Z-Axes |
| · |
Rugged
Dual Rack & Pinion Drive on Y axis |
| · |
Custom
Aluminum Extruded Bridge and Table Rails |
| · |
Precision
CNC Fabricated Structural Gussets |
| · |
High
Speed 2D contouring & 3D machining |
Standard
Features
| Spindle Options |
|
|

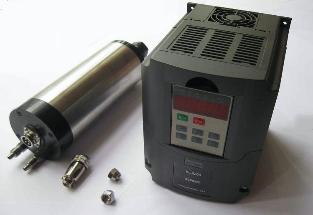

| 2.0 HP High
Frequency Spindle with Inverter |
SP-1500 |
$975 |
| 3.0
HP High Frequency Spindle with Inverter |
SP-2200 |
$1,100 |
| Vacuum Options |
|
|
| VC4 V-Clamp Pod
(Runs from Compressed Air) |
VC-VC4 |
$75 |
| Software Options |
|
|
|
Cut2D CAD/CAM
|
SW-CUT2D |
$200 |
| Cut3D CAD/CAM |
SW-CUT2D |
$300 |
|
PhotoVCarve
|
SW-PHOT |
$150 |
|
VCarve Pro
|
SW-VCR |
$600 |
| · |
3'x5'
Cutting Area |
| · |
Bolt
Together Steel Table |
| · |
500
IPM Speed |
| · |
Smooth
Contouring |
