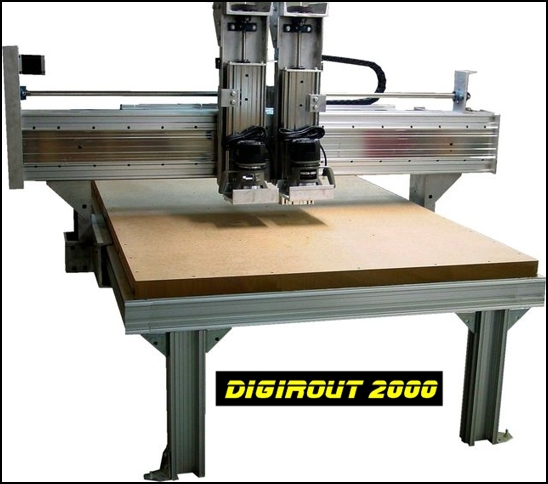

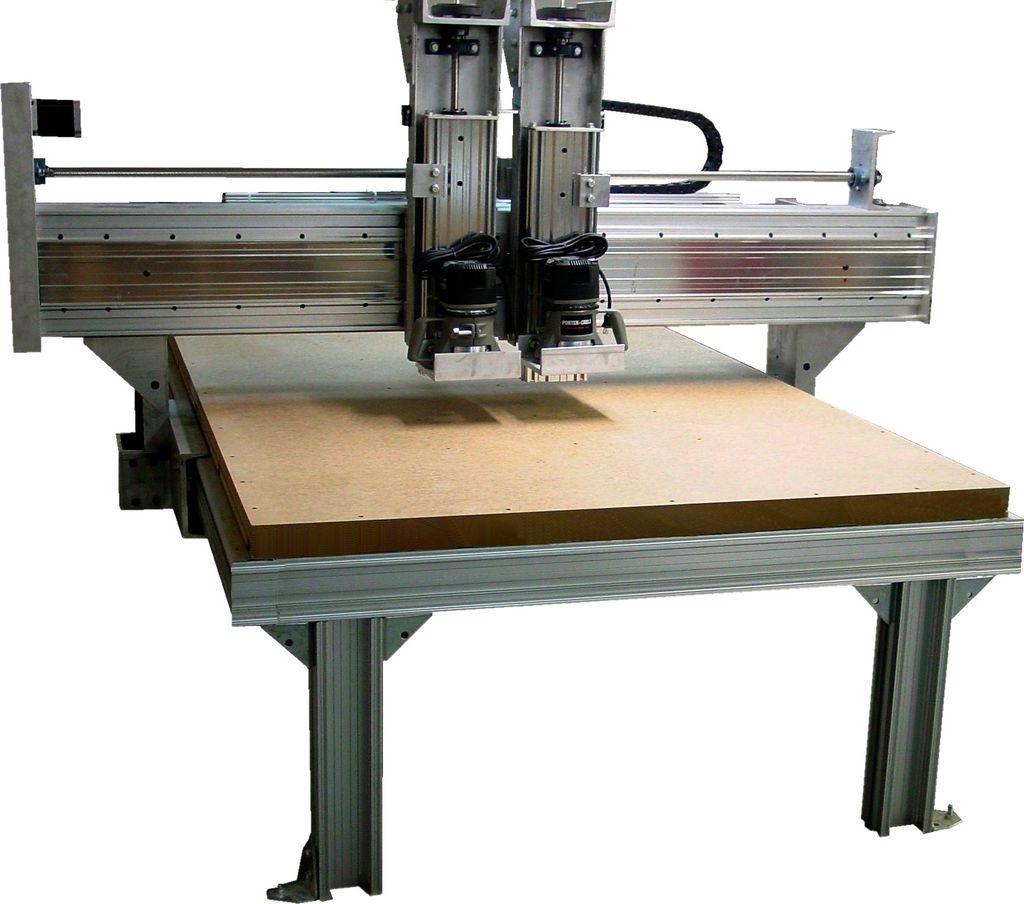

The
industrial DigiRout 2000 full featured CNC Router offers a full sized
4'x8' or 5'x10' CNC Router
at an economical price - 4'x8' for $7800, 5'x10' for $8800.
Constructed from heavy duty aluminum extrusions, the DigiRout 2000
features a massive 5"x10" cross section bridge, ultra high torque
digital drive system, precision ground guideways and linear bearings,
rugged duty leadscrew and dual rack and pinion transmissions and easy
to use PC based motion control.
If you need a full sized industrial cnc router, the DigiRout CNC 2000
router will work for you at a reasonable price.Our introductory pricing
allow shops to buy an industrial cnc router that pays for
itself
in just a few short months of operation.
Lease Rate is less than $8 per day - You may be paying this much for
phone and internet service for your business!
See Pricing at the bottom of this page.
New Pro Upgrade
Options
CNC
Technology On the Cutting Edge
DigiRout
2000
Pro DC Servo
Option
- Skewed rotor design
- Constant torque 225 oz-in
- Peak torque 1125 oz-in
- Max
Speed 3000RPM
Pro Hiwin Bearings
15mm
Hiwin Rails and Blocks
- Size:
15mm Linear
Guide Rail
- Dynamic
Load: Up to 2,020 lbs.
- Static
Load:
Up to 3,930 lb
s.
Pro AC Servo
Increase
the speed of theDigirout 2000
to 1500 IPM with a .5kW (.6HP)
- Brushless
AC servo motor.
- Rated Power:
0.4KW ( .5 HP)
- Peak Torque:
1010 oz-in
- Max Speed: 1000
RPM
- Voltage: 70 VDC
Click on DigiRout Model
Below
Give us a call Toll Free at 866-966-4335 to discuss your CNC Router
application or email us at
sales@digirout .
Regenerative Blower

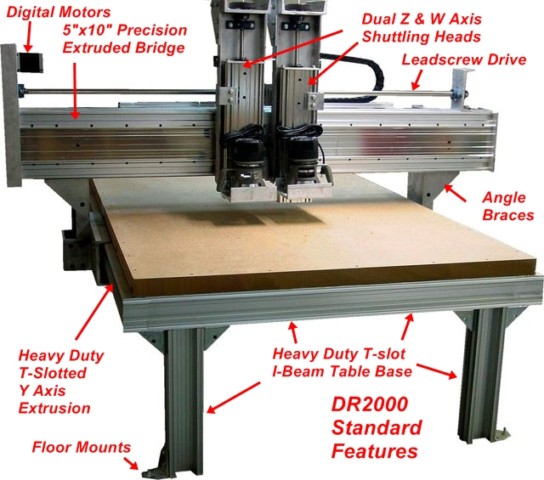

Digirout 2000 Features
T-Slotted Vacuum Deck
AC Servo Motors
DC Servo Motors
Structural
Steel/Aluminum Parts
D DigiRout 2000 Prices
Click on
Picture above for High resolution image
DigiRout 2000
| · |
4'x8'
or 5'x10' Cutting Area |
| · |
Easy
Loading Table |
| · |
500
IPM Speed |
| · |
Smooth
Contouring |
Standard Features
| · |
Speeds
up to 500 Inches Per Minute |
| · |
PC
based Motion Control |
| · |
High
Torque Motors and Microstepping Drives |
| · |
Precision
MultiSart Lead Screw on X & Z-Axes |
| · |
Rugged
Dual Rack & Pinion Drive on Y axis |
| · |
Custom
Aluminum Extruded Frame |
| · |
Precision
CNC machined Structureal Gussets |
| · |
High
Speed 2D contouring & 3D machining |
| DR2000 4'x8'
Base Machine Options |
CAT # |
Price |
|
DR2000 4' x 8' x 6" cutting area Industrial CNC Router |
DR-2481 |
$7,800 |
| Ready To
Assemble Bolted and Welded Square Tube Steel Table - 4'x10' |
ST-4810 |
$700 |
| Porter Cable
7518 3 & 1/4 HP router & Mounting Brackets
|
SP-7518 |
$500 |
| Cut2D,
Cut3D and PhotoVCarve bundle |
SW-VCT |
$500 |
| Total of Above
without Discount |
|
$10,600 |
| DR2000
Package Price Discount |
|
-$1,000 |
|
|
|
| DR2000 Package
Price with $700 Discount |
PK-22481 |
$8,500 |
| Spindle Options |
|
|
| 6 HP HSD High
Frequency Spindle with Inverter
|
SP-6090 |
$2,600 |
| 8 HP HSD High
Frequency Spindle with Inverter |
SP-8090 |
$2,900 |
| 5 HP HSD
Automatic Tool Changer Spindle with Inverter |
SP-5ATC |
$5,900 |
| 10 HSD HP
Automatic Tool Changer Spindle with Inverter |
SP-5ATC
|
$6,900 |
| 5.5 HP China Air Cooled High
Frequency Spindle with Inverter |
SP-5CH |
$1,200 |
| 5.5 HP China Water Cooled Automatic
Tool Change with Inverter |
SP-5ATCCH |
$4,000 |
| Pro Upgrade Options |
CAT # |
Price |
| DC
Brush Servomotor upgrade X,Y, & Z axes
|
OP-DCServ |
$600 |
| AC
Brush Servomotor upgrade X,Y, & Z axes |
OP-ACServ |
$800 |
| 15mm
Profile Linear Recirculating Bearings X & Z axes |
OP-15XZ |
$700 |
| 15mm
Profile Linear Recirculating Bearings X,Y & Z axes and Ballscrew |
OP-15XYZ
|
$1,400 |
| Vacuum Options |
CAT # |
Price |
| Regenerative
Blower (Application Dependent) |
VC-RG1 |
$CALL |
| Additional Axes
Options |
|
|
| Second Vertical W head with
microstep drive |
AX-MVW |
$600 |
| Rotary
Lathe W axis with motor & microstep drive |
AX-MRW |
$600 |
| Second Vertical W head with servo
motor & drive |
AX-MVV |
$800 |
| Rotary
Lathe W axis withservo motor & drive drive |
AX-SRW |
$800 |
| 5 axis B&C
rotary head with microstep drive |
AX-MBC |
$1200 |
| 5 axis B&C rotary head
with Servo drive |
AX-SBC |
$1400 |
| Table Options |
|
|
| Ready To
Assemble Bolted and Welded Square Tube Steel Table 4'x10' |
ST-4810 |
$700 |
| Ready To
Assemble Bolted and Welded Square Tube Steel Table 5'x12' |
ST-4810 |
$900 |
| Ready To
Assemble Bolted Aluminum I-Beam Table 4'x10' |
AT-4810 |
$2000 |
| Ready To
Assemble Bolted Aluminum I-Beam Table 5'x12' |
AT-5112 |
$2200 |
| Composite (Engineered Wood/Plastic) TableConnector Kit 4'x10' (Composite Material Customer Supplied) 4'x10' |
CM-4810 |
$90 |
| CompositeTable (Engineered Wood/Plastic) Connector Kit 5'x12' (Composite Material Customer Supplied) 5'x12' |
CM-5112 |
$100 |
| DR2000 5'x10'
Base Machine Options |
CAT # |
Price |
| DR2000
5' x 10' x 6" cutting area Industrial CNC Router |
DR-2510 |
$8,800 |
| Ready To
Assemble Bolted and Welded Square Tube Steel Table - 5'x12' |
ST-5112 |
$900 |
| Porter Cable
7518 3 & 1/4 HP router & Mounting Brackets
|
SP-7518 |
$500 |
| Cut2D, Cut3D
and PhotoVCarve bundle |
SW-VCT |
$500 |
| Total of Above
without Discount |
|
$11,700 |
| DR2000
Package Price Discount |
|
-$1,000 |
| |
|
|
| DR2000 Package
Price with $700 Discount |
PK-2510 |
$9,700 |
