| · | Speeds up to 500 Inches Per Minute |
| · | PC based Motion Control |
| · | High Torque Motors and Microstepping Drives |
| · | Precision Multi-Start Lead Screw on X & Z-Axes |
| · | Rugged Dual Rack & Pinion Drive on Y axis |
| · | Custom Aluminum Extruded Bridge and Table Rails |
| · | Precision CNC Fabricated Structural Gussets |
| · | High Speed 2D contouring & 3D machining |
| · | 4'x8' Cutting Area |
| · | Bolt Together Steel Table |
| · | 500 IPM Speed |
| · | Smooth Contouring |
| DR1000 Pro Machine Prices | CAT # | Price | |

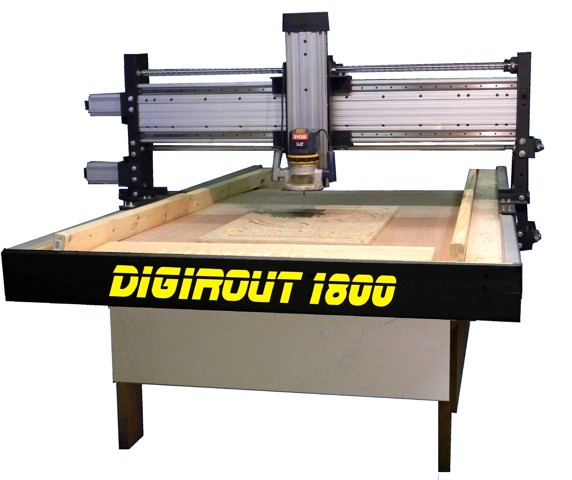

| DR1800 4' x 8' x 4" cutting area Industrial CNC Router Kit | DR-1000 | $6,800 | |
| Bolt Together Steel Angle (2"x2"x1/4") Table (4' x 10' footprint) | ST-4808 | $400 | |
| 5.0 HP High Frequency Square Spindle with Inverter | SP-4KW | $900 | |
| X & Z axis 4 row Hiwin Bearings | BR-XZ4
|
$700 | |
|
AC-XYZ DC-XYZ |
$600 $600 |
|
| X & Z axis 25mm and 16mm ballscrew upgrade |
BS-XZ
|
$300 | |
| Cut2D DXF to Gcode CAM software | SW-CUT2D | $150 | |
| Total of Above without Discount |
$9850
|
||
| DR1000 Pro Package Price with $1000 Discount | PR-1000 |
$8850
|
|
| Additional charge for Pre-assembly | AS-1000 | $1,000 |
| Linear Bearing & Ballscrew Options | ||
| X & Z axis 2 row Hiwin Bearings | BR-XZ2 | $500 |
| X & Z axis 4 row Hiwin Bearings | BBR-XZ4 | 4 $700 |
| X & Z axis 25mm and 16mm
ballscrew upgrade |
BS-XZ | $300 |
| DR1000 Machine Prices | CAT # | Price |
| DR1800 4' x 8' x 4" cutting area Industrial CNC Router Kit | DR-1000 | $6,800 |
| Bolt Together Steel Angle (2"x2"x1/4") Table (4' x 10' footprint) | ST-4808 | $400 |
| Porter Cable 7518 3 & 1/4 HP router & Mounting Brackets | SP-7518 | $500 |
| Cut2D DXF to Gcode CAM software | SW-CUT2D | $150 |
| Total of Above without Discount | $7850 | |
| DR1000 Package Price Discount | -$400 | |
| DR1000 Package Price with $400 Discount | PK-1000 | $7450 |
| Additional charge for Pre-assembly | AS-1000 | $1,000 |

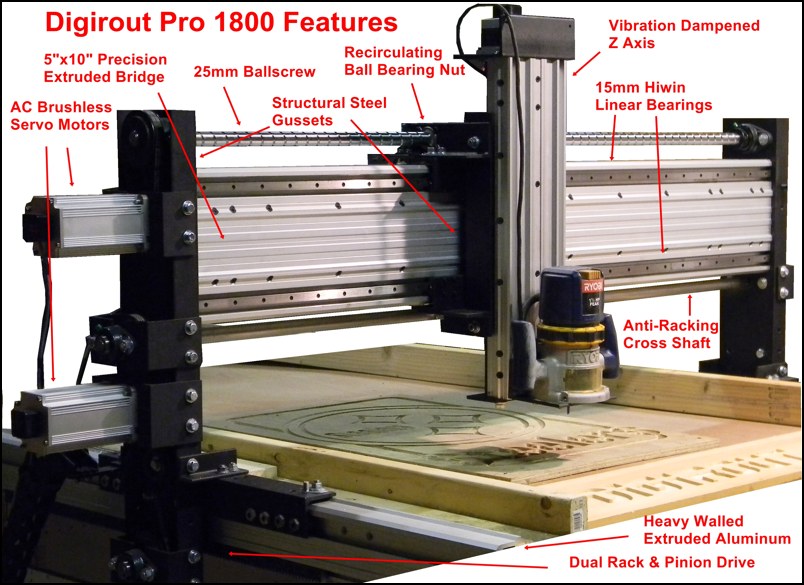

| · | Speeds up to 1000 Inches Per Minute |
| · | PC based Motion Control |
| · | AC Brushless DSP Servo or DC Brush Gecko Servo Drives |

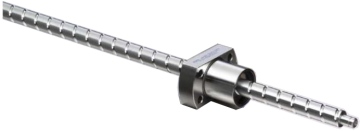

| · | Precision Multi-Circuit Ball Screw on X (Dual) & Z-Axes |
| · | Rugged Dual Rack & Pinion Drive on Y axis |

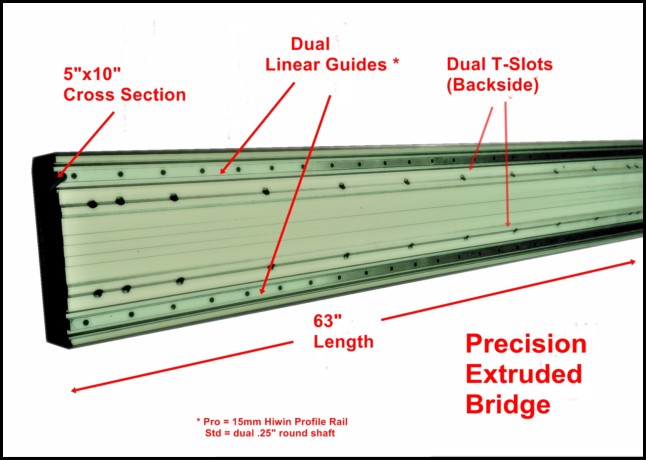

| · | Custom Aluminum Extruded Bridge and Table Rails |
| · | Precision CNC Fabricated Structural Gussets |
| · | Hiwin
Square Profile
Recirculating Blocks and Rails |
| Spindle Options | ||
| 4.0 HP High Frequency Spindle with Inverter | SP-3KW | $700 |
| 5.0 HP High Frequency Square Spindle with Inverter | SP-4KW | $900 |
| 5.0 HP High Frequency ATC (Automatic Tool Changer)Spindle with Inverter | SP-4KW | $3600 |
| Vacuum Options | ||
| VC4 V-Clamp $900 Pod (Runs from Compressed Air) | VC-VC4 | $75 |
| Software Options | ||
|
Cut2D CAD/CAM |
SW-CUT2D | $150 |
| Cut3D CAD/CAM | SW-CUT2D | $300 |
|
PhotoVCarve |
SW-PHOT | $150 |
|
VCarve Pro |
SW-VCR | $600 |
| · | 4'x8' Cutting Area |
| · | Bolt Together Steel Table |
| · | 1000 IPM Speed |
| · | Smooth Contouring |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Additional Axes Options | ||
| Second Vertical W head with microstep drive | AX-MVW | $500 |
| Rotary Lathe W axis with motor & microstep drive | AX-MRW | $500 |
| Second Vertical W head with servo motor & drive | AX-MVV | $700 |
| Rotary Lathe W axis withservo motor & drive drive | AX-SRW | $700 |
| 5 axis B&C rotary head with microstep drive | AX-MBC | $900 |
| 5 axis B&C rotary head with Servo drive | AX-SBC | $1300 |
| Motor Drive Options | ||
| XY 400 watt & Z 220 watt AC Brushless Servo Motors and Drives upgrade | AC-XYZ | $600 |
| XYZ DC Brush Motor and 70V G320x Gecko (USA) drives | DC-XYZ | $600 |
